Description

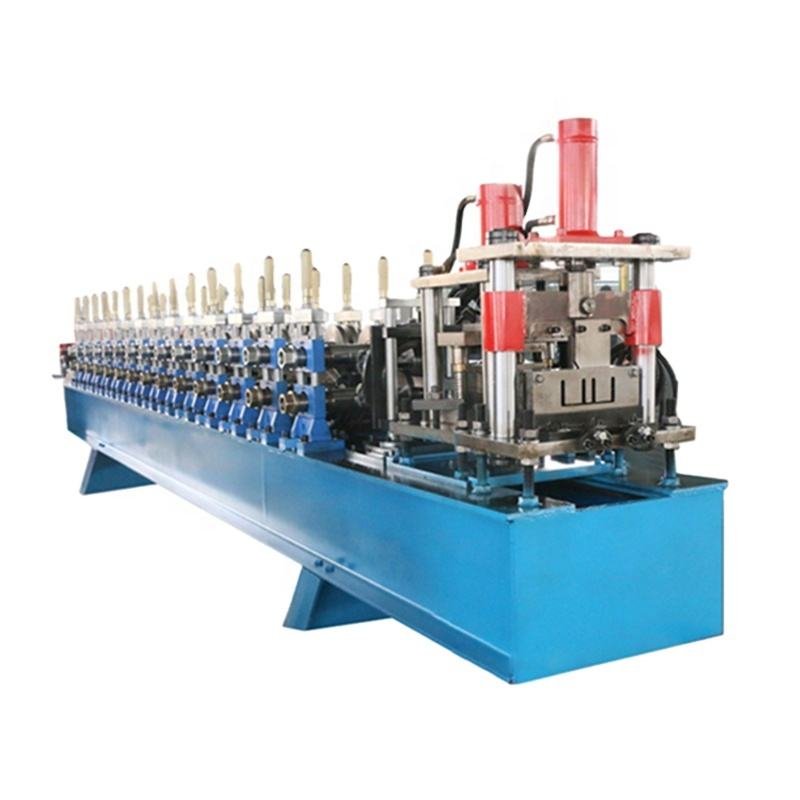

The Omega Profile Roll Forming Machine manufactured by Solaris Industries Ltd. is engineered to produce omega-shaped structural profiles commonly used in wall panel framing, ceiling channels, solar mounting structures, fencing posts, partition systems, and lightweight structural supports.

The machine features a hydraulic decoiler, precise feeding unit, robust roll forming stations, and a hydraulic cutting system. Omega profiles require accurate shaping to ensure consistent alignment and load distribution. Our CNC-machined rollers provide smooth forming without buckling, waviness, or profile deformation — ensuring superior product quality.

Solaris Industries Ltd. customizes omega profile dimensions, including width, height, flange depth, and punching patterns. The machine supports 0.4 mm to 1.0 mm material thickness and is compatible with GI, CR, HR, and pre-painted steel. With production speeds up to 35 meters per minute, it is ideal for both medium and large-scale manufacturing.

Optional punching stations can be integrated for slots, holes, cable routing points, and mounting provisions for solar structures. The PLC automation ensures easy parameter control, batch management, and real-time fault detection.

Applications include solar structure supports, stud walls, fencing, cable management frameworks, and modular building systems.

🔧 Technical Specifications — Omega Profile Roll Forming Machine

Parameter	Specification
Material	GI / CR / HR Steel
Thickness	0.4 – 1.0 mm
Coil Width	100–300 mm
Profile Size	Custom omega shapes
Speed	Up to 35 m/min
Cutting	Hydraulic shearing
Punching	Optional inline punching
Roller Material	Cr12 / D2 Hardened Steel
Control System	PLC + Touchscreen
