Description

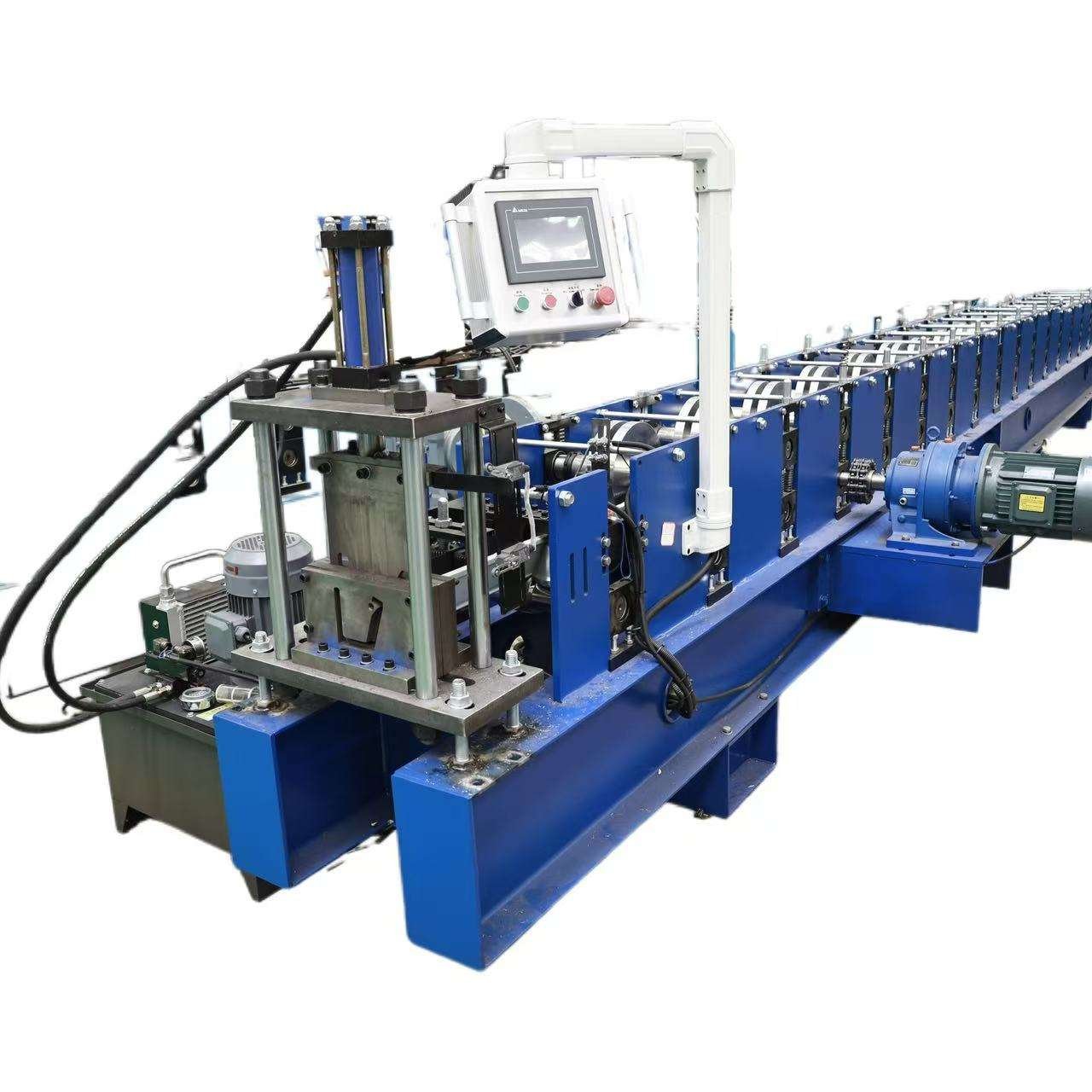

The Downspout/Gutter Roll Forming Machine from Solaris Industries Ltd. is an advanced production line engineered to manufacture high-quality rainwater gutters and downpipes used in roofing drainage systems for residential buildings, commercial complexes, industrial sheds, warehouses, agricultural structures, and prefab constructions. These components play a crucial role in rainwater management, protecting buildings from leakage, wall dampness, and structural erosion. Solaris ensures every machine is designed for precision, durability, and long-term performance.
Built using a robust welded steel frame, the machine offers exceptional stability and vibration-free operation even under continuous production. The line consists of a decoiler, feeding guide, precision roll forming system, hydraulic cutting unit, and a PLC-based automation panel. The rollers are CNC-machined from hardened tool steel (Cr12/D2) and polished to ensure perfect bending, smooth shaping, and distortion-free profile formation.
Solaris Industries Ltd. manufactures machines for producing many types of gutters and downpipes, including:
- K-Style Gutters
- U-Type and Half-Round Gutters
- Box Gutters
- Square/Rectangular Downpipes
- Round Downpipes
- Custom Architectural Drainage Profiles
The machine supports GI, PPGI, PPGL, aluminum, copper, and coated steel, with thicknesses ranging from 0.3 mm to 0.8 mm. It can accommodate coil widths according to the specific gutter design.
The hydraulic cutting system ensures clean, accurate, burr-free cuts and extends blade life. Production speeds typically range from 8–25 meters per minute, depending on the profile complexity and material used. Advanced PLC automation allows operators to set product length, batch count, speed control, and perform system diagnostics with ease.
Optional attachments can significantly expand the machine’s capabilities:
- Elbow-forming machine for creating gutter elbows
- Downpipe curving unit for decorative water outlets
- Punching station for drainage or mounting holes
- Embossing unit for decorative surface textures
- Automatic stacker for enhanced workflow
Designed for low maintenance, long service life, and high operational efficiency, the Downspout / Gutter Roll Forming Machine from Solaris Industries Ltd. is an excellent choice for manufacturers aiming for premium quality output and continuous productivity in the rainwater management sector.
🔧 TECHNICAL SPECIFICATIONS — Downspout / Gutter Roll Forming Machine
| Parameter | Specification |
| Material Type | GI, PPGI, PPGL, Aluminum, Copper, Coated Steel |
| Material Thickness | 0.30 – 0.80 mm |
| Coil Width Capacity | 200 – 600 mm (based on gutter design) |
| Decoiler Capacity | 3–5 Ton (Manual/Hydraulic) |
| Forming Stations | 12 – 22 stations (profile dependent) |
| Roller Material | Cr12 / D2 Hardened & Polished |
| Shaft Diameter | 50–70 mm |
| Profile Types | K-Gutter, U-Gutter, Box Gutter, Downpipes |
| Forming Speed | 8 – 25 m/min |
| Cutting System | Hydraulic Shear / Servo Cutting (Optional) |
| Cutting Accuracy | ±1 mm |
| Power Requirement | 10–20 HP |
| Control System | PLC + HMI Touchscreen |
| Drive Mechanism | Chain/Gear Drive |
| Optional Add-ons | Punching Unit, Curving/Elbow Machine, Embossing, Auto Stacker |
