Description

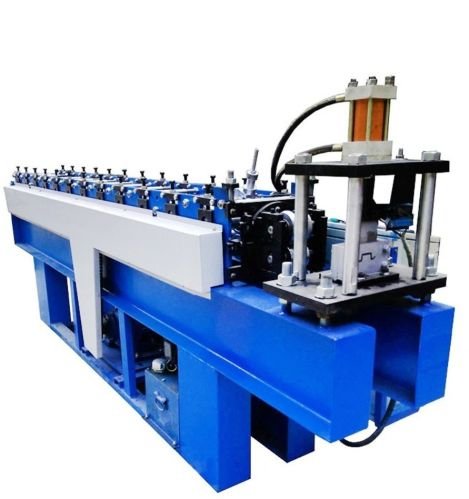

The Cable Tray Roll Forming Machine from Solaris Industries Ltd. is engineered to manufacture cable trays, cable raceways, and ladder-type trays used in electrical installations, data centers, industrial wiring, commercial buildings, and power distribution systems. These trays must meet high standards of strength, precise dimensions, and corrosion resistance—requirements perfectly supported by our advanced roll forming technology.

The machine integrates an automatic decoiler, leveling system, servo-based feeding, hydraulic punching station, multi-stage forming stations, and a hydraulic cutting unit. Since cable trays require numerous perforations for ventilation and cable routing, the integrated punching unit is equipped with multiple tooling dies, enabling complex punching patterns without production interruption.

Solaris Industries Ltd. produces machines for:

• Perforated cable trays
• Ladder cable trays
• Raceways
• Trunking systems

The roll forming rollers are CNC-manufactured from hardened tool steel to ensure accuracy even under heavy-duty usage. Production speeds range from 8 to 15 meters per minute depending on material thickness and punching load. The machine supports steel thicknesses from 0.8 mm to 2.5 mm and coil widths up to 1000 mm.

The PLC control system enables real-time monitoring, error alerts, production settings, and punching configuration adjustments. We also offer customization for tray dimensions, ribbing patterns, side-wall height, and perforation designs to match industrial standards.

Applications:

• Electrical wiring management
• Industrial power distribution
• Commercial building wiring
• IT server room cable routing

🔧 Technical Specifications — Cable Tray Roll Forming Machine

Parameter	Specification
Material	GI / HR / CR / MS
Thickness	0.8 – 2.5 mm
Coil Width	Up to 1000 mm
Tray Types	Ladder, perforated, raceway
Punching	Hydraulic multi-die punching
Cutting	Hydraulic cutting
Speed	8–15 m/min
Control System	PLC + HMI
Roller Material	D2 / Cr12 hardened steel
